Hadady Heavy Duty 3000 PSI Mill Type Cylinders
We specialize in custom hydraulic cylinders - any bore, any stroke. Hadady offers
a two-week delivery on standard cylinder orders. Request a catalog today
We specialize in custom hydraulic cylinders - any bore, any stroke. Hadady offers
a two-week delivery on standard cylinder orders. Request a catalog today
Standard Hadady Hydraulic Cylinder Features:
* Non-Score Piston
* Hardened Rod
* Largest Standard Rod
* Longest Piston
* Longest Rod Bearings
* Urethane Dynamic Seals
* All Steel Construction
* Low Maintenance Cost
* Double Piloted Piston
* Chrome Plated Rod
* Non-Score Piston
* Hardened Rod
* Largest Standard Rod
* Longest Piston
* Longest Rod Bearings
* Urethane Dynamic Seals
* All Steel Construction
* Low Maintenance Cost
* Double Piloted Piston
* Chrome Plated Rod
Hadady Heavy Duty 3000 PSI Mill Type Cylinders
How to Order Hadady 3000 PSI Mill Cylinders
Bore and Stroke
* Mounting Style - If trunnion, specify dimension from rod end to centerline of trunnion.
* Cushioning - Non-cushioned, cushioned ends, cushioned head only or cushioned cap
only. Note: Long rod bearing furnished with non-cushioned and cushioned cap only.
* Rod Extension - Standard is shown. If other than standard desired, specify: "D"
dimension wanted with rod retracted.
* Rod End - Female end is standard as shown. Specify standard male end if desire
standard stud. If special threads, male or female, are wanted, a sketch is requested with
rod retracted.
* Oversize Rods, Ports, etc. - These are special order. Please specify what is desired
and we'll be happy to give you a free quote. If ordered, a sketch will be sent for approval
prior to manufacture. Please specify your hydraulic fluid.
Heavy Duty Cylinder Manufacturing - Master Parts List
Bore and Stroke
* Mounting Style - If trunnion, specify dimension from rod end to centerline of trunnion.
* Cushioning - Non-cushioned, cushioned ends, cushioned head only or cushioned cap
only. Note: Long rod bearing furnished with non-cushioned and cushioned cap only.
* Rod Extension - Standard is shown. If other than standard desired, specify: "D"
dimension wanted with rod retracted.
* Rod End - Female end is standard as shown. Specify standard male end if desire
standard stud. If special threads, male or female, are wanted, a sketch is requested with
rod retracted.
* Oversize Rods, Ports, etc. - These are special order. Please specify what is desired
and we'll be happy to give you a free quote. If ordered, a sketch will be sent for approval
prior to manufacture. Please specify your hydraulic fluid.

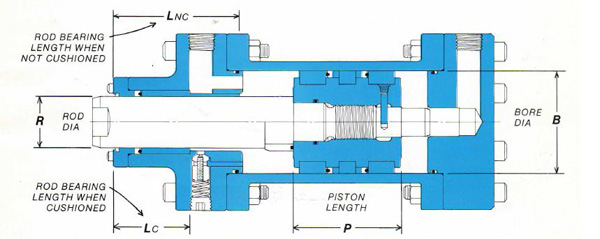

Heavy Duty Cylinder Manufacturing - Master Parts List
20 - Universal Steel Head
21 - Universal Steel Cap
22 - Steel Piston
24 - Steel Heavy Wall Tube with Welded Flanges
25 - Bronze Retainer
26 - Bronze Long Rod Bearing
(Available only without head cushioning)
27 - Bronze Split Center Ring
28 - Non-Metallic Split Piston Wear Rings
29 - Bronze Short Rod Bearing
(furnished only with head end cushioning)
30 - Stainless Cushion Valve
(combination check and cushion adjusting valve)
31 - Cushion Valve Spring
32 - Bronze Cushion
33 - Urethane Piston Seal
34 - Non-Metallic Piston Seal Backup Ring
35 - Piston O-Ring
36 - Urethane Rod Seal
37 - Urethane Rod Wiper
21 - Universal Steel Cap
22 - Steel Piston
24 - Steel Heavy Wall Tube with Welded Flanges
25 - Bronze Retainer
26 - Bronze Long Rod Bearing
(Available only without head cushioning)
27 - Bronze Split Center Ring
28 - Non-Metallic Split Piston Wear Rings
29 - Bronze Short Rod Bearing
(furnished only with head end cushioning)
30 - Stainless Cushion Valve
(combination check and cushion adjusting valve)
31 - Cushion Valve Spring
32 - Bronze Cushion
33 - Urethane Piston Seal
34 - Non-Metallic Piston Seal Backup Ring
35 - Piston O-Ring
36 - Urethane Rod Seal
37 - Urethane Rod Wiper
38 - End Cover O-Ring
39 - End Cover Backup Ring
43 - Cushion O-Ring
44 - Cushion Valve Plug
40 - Case Hardened Chrome Plated High Tensile Piston
Rod-Cushioned both ends
23 - Piston Rod Non-Cushioned
*45 - Piston Rod — Cushioned Head End Only
*46 - Piston Rod — Cushioned Cap Head Only
*47 - Alloy High Tensile Stud for Standard Male Rod End
41 - Grade 8 High Tensile Head Bolts with Nuts
42 - Grade 8 High Tensile Retainer Bolts
*10 - Steel Foot Mount Head
*11 - Steel Foot Mount Cap
*12 - Steel Clevis Mount Cap
*13 - Steel Round Flange Head
*14 - Steel Rectangular Flange Head
*15 - Steel Rectangular Flange Cap
*16 - Steel Trunnion Welded to Tube
* - Not Shown in Picture Above
39 - End Cover Backup Ring
43 - Cushion O-Ring
44 - Cushion Valve Plug
40 - Case Hardened Chrome Plated High Tensile Piston
Rod-Cushioned both ends
23 - Piston Rod Non-Cushioned
*45 - Piston Rod — Cushioned Head End Only
*46 - Piston Rod — Cushioned Cap Head Only
*47 - Alloy High Tensile Stud for Standard Male Rod End
41 - Grade 8 High Tensile Head Bolts with Nuts
42 - Grade 8 High Tensile Retainer Bolts
*10 - Steel Foot Mount Head
*11 - Steel Foot Mount Cap
*12 - Steel Clevis Mount Cap
*13 - Steel Round Flange Head
*14 - Steel Rectangular Flange Head
*15 - Steel Rectangular Flange Cap
*16 - Steel Trunnion Welded to Tube
* - Not Shown in Picture Above
 | |  | |  | |  | |  | |  |
